ESP32-C6-Touch-AMOLED-2.16

中文 Wiki: https://www.waveshare.net/wiki/ESP32-C6-Touch-AMOLED-2.16
English Wiki: https://www.waveshare.com/wiki/ESP32-C6-Touch-AMOLED-2.16

Overview

This repository contains ESP-IDF firmware and examples for the ESP32-C6 Touch AMOLED 2.16 board.

• Root firmware is an LVGL-based desktop UI project.
• Additional examples are provided under 02_Example, from basic peripheral demos to UI and networking demos.

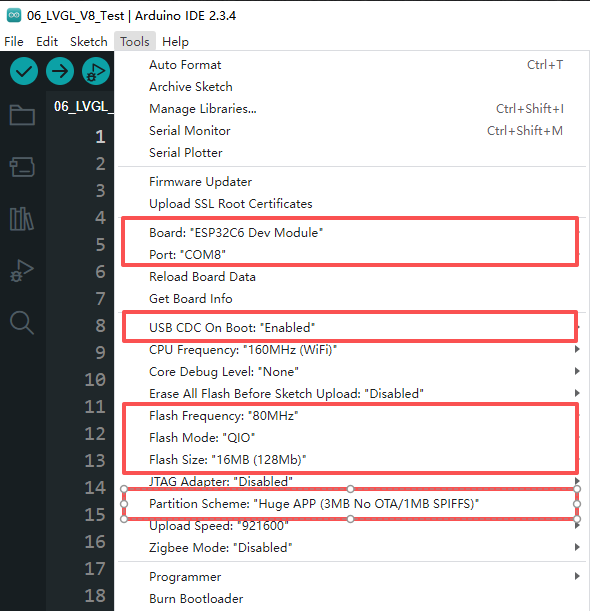

Arduino Tools Configuration

Environment

• ESP-IDF: v6.0.1 recommended
• Target chip: esp32c6
• Host OS: macOS, Linux, or Windows

Quick Start (ESP-IDF)

1. Clone repository:

git clone https://github.com/furyhawk/ESP32-X-Desktop.git
cd ESP32-X-Desktop

2. Set up ESP-IDF environment and target:

. $IDF_PATH/export.sh
idf.py set-target esp32c6

3. Build firmware:

idf.py build

If your local ESP-IDF Python environment has issues with idf.py build, use the generated build directory directly:

cmake --build build -j4

4. Flash and monitor:

idf.py -p /dev/tty.usbmodemXXX flash monitor

Project Layout

• 03_Firmware: generated build artifacts and internal build outputs
• components: board support, platform abstraction, and reusable modules
• main: application entry, UI app code, modules, and configuration headers
• 02_Example: standalone example projects
• scripts: utility scripts for flashing and diagnostics

Examples

Examples are located in 02_Example:

• 01_AXP2101_Test
• 02_I2C_QMI8658
• 03_I2C_PCF85063
• 04_SD_Card
• 05_WIFI_STA
• 06_WIFI_AP
• 07_Audio_Test
• 08_LVGL_V8_Test
• 09_LVGL_V9_Test

Each example includes its own CMakeLists.txt and sdkconfig.defaults.

Notes

• Root project currently uses project(09_LVGL_V9_Test) in top-level CMakeLists.txt.
• Build configuration files include sdkconfig, sdkconfig.defaults, and partitions.csv.

Change Log

[1.0.0] 2026/03/30

• Initial version
• Examples progress from simple to advanced, helping users get started quickly

更新日志

[1.0.0] 2026/03/30

• 初始版本
• 示例由浅入深，帮助用户快速上手
